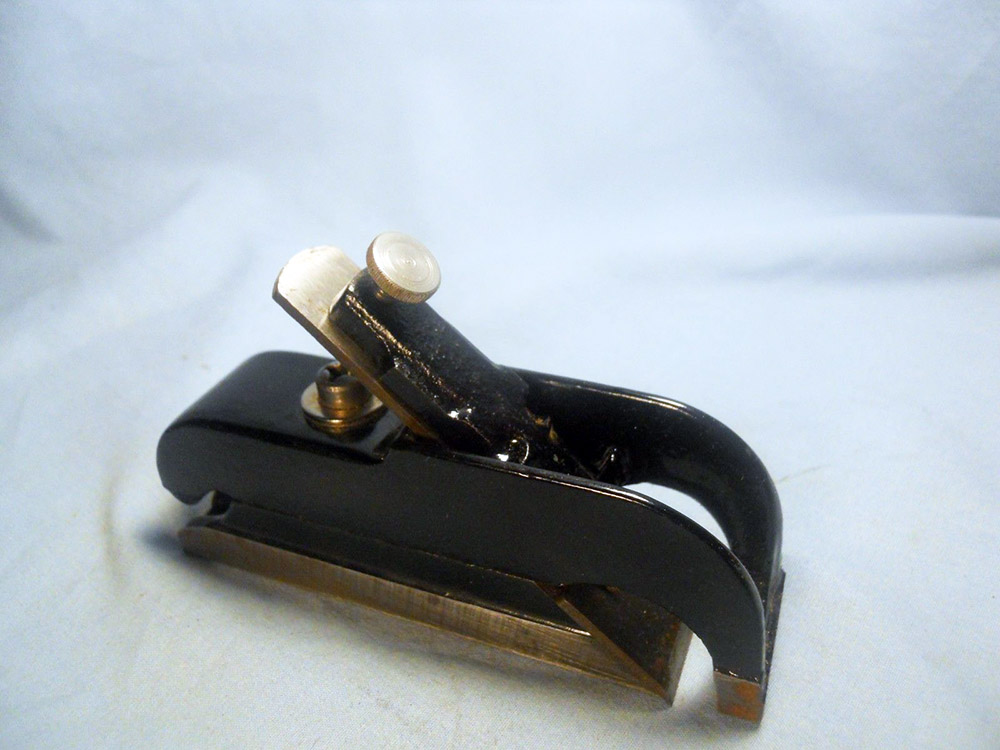

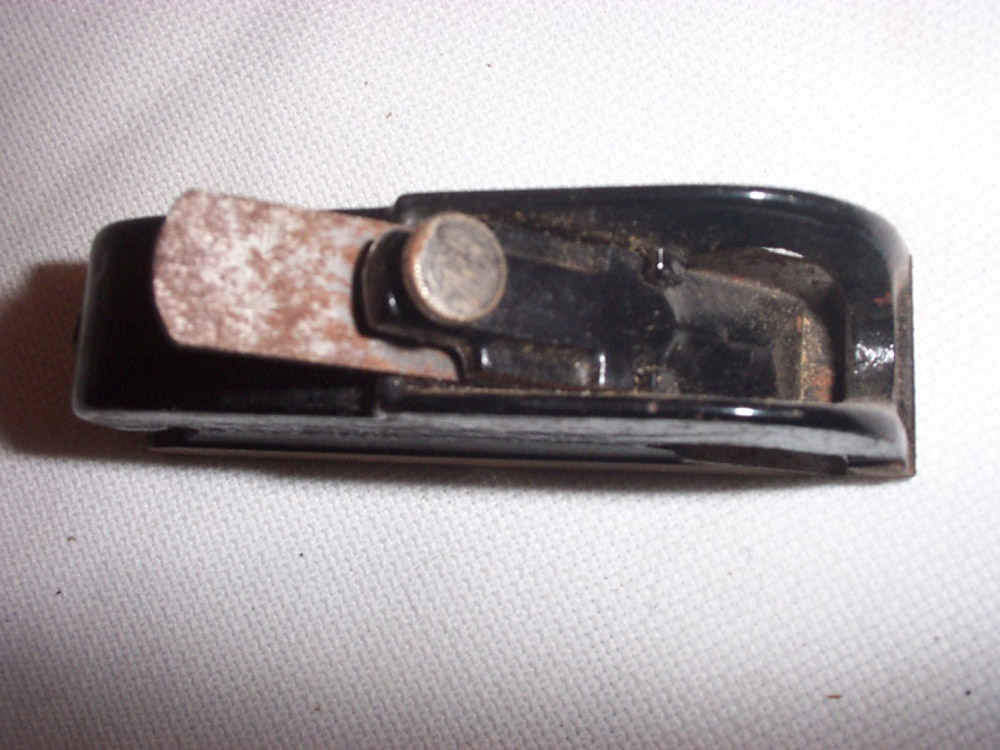

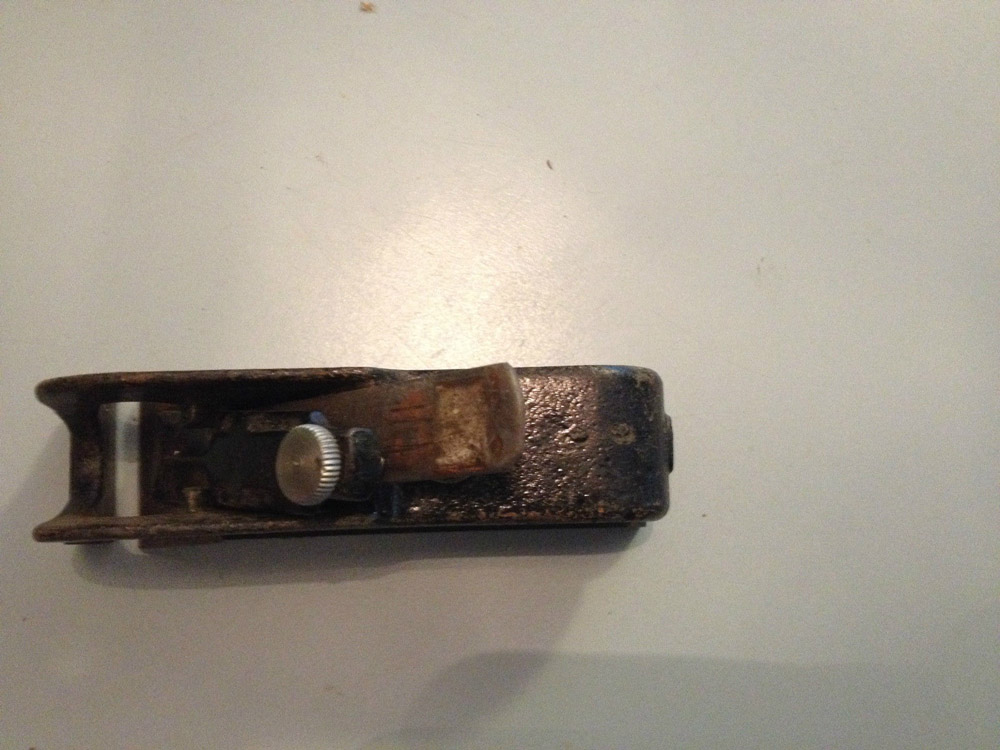

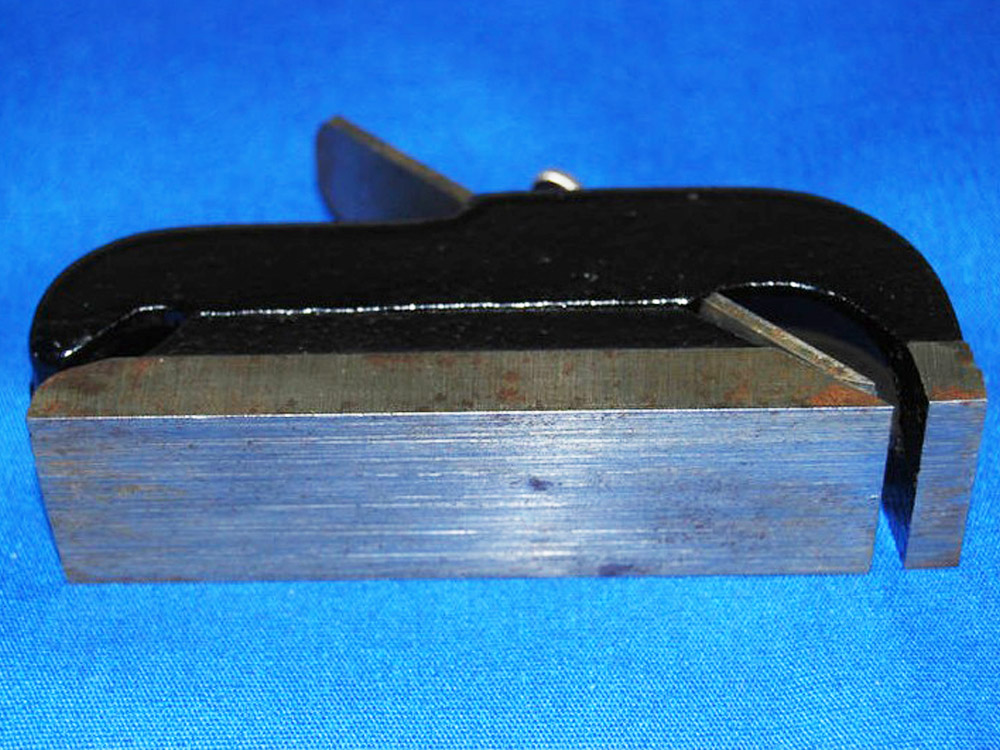

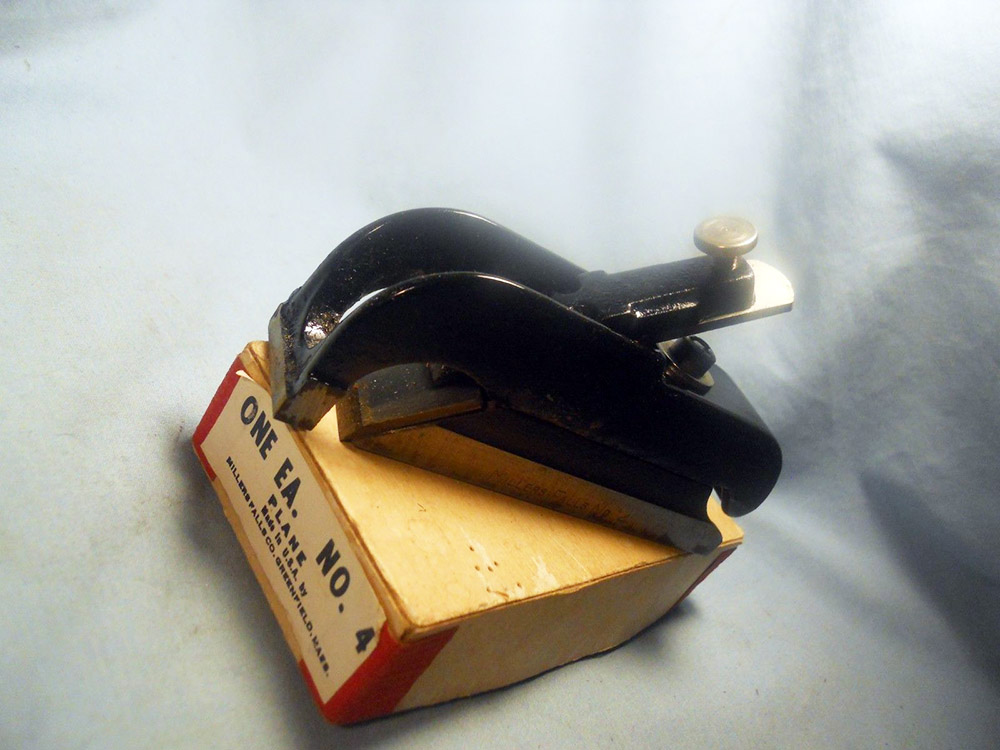

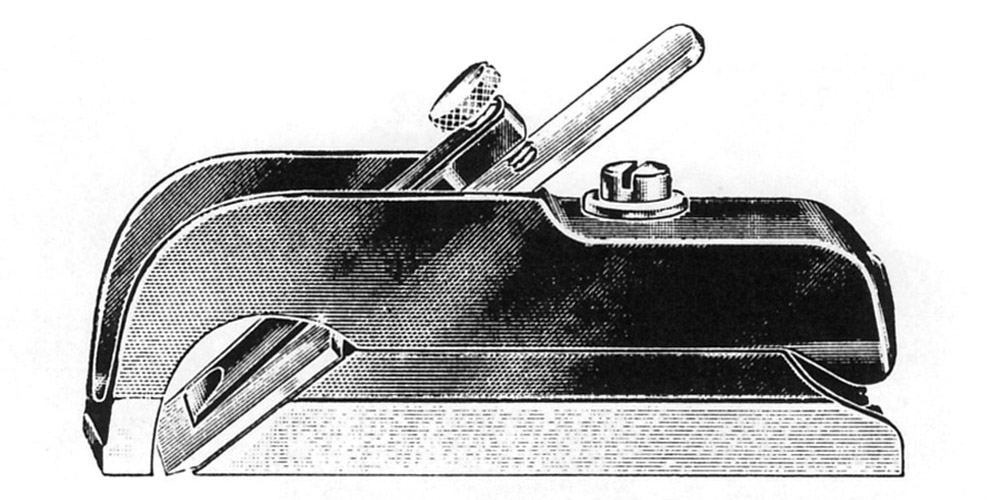

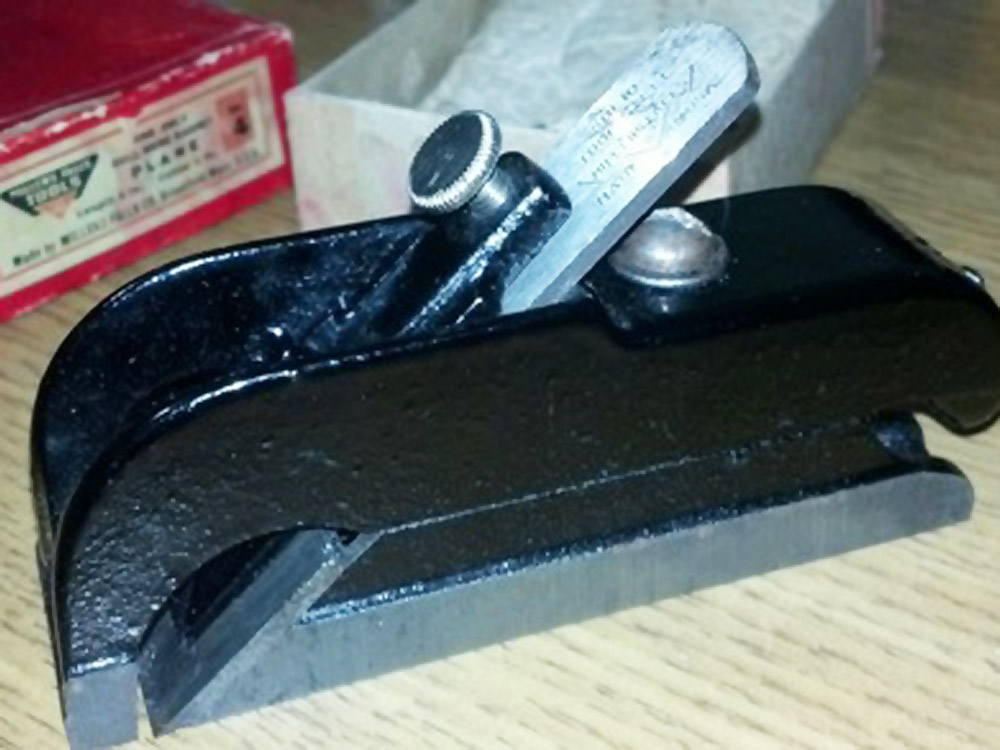

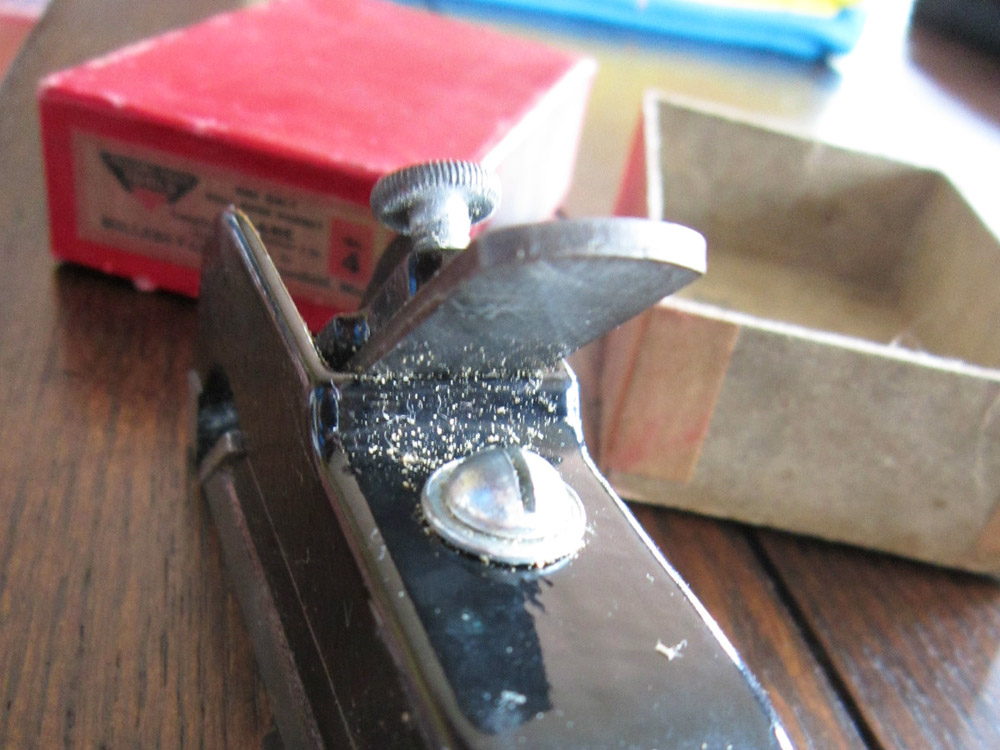

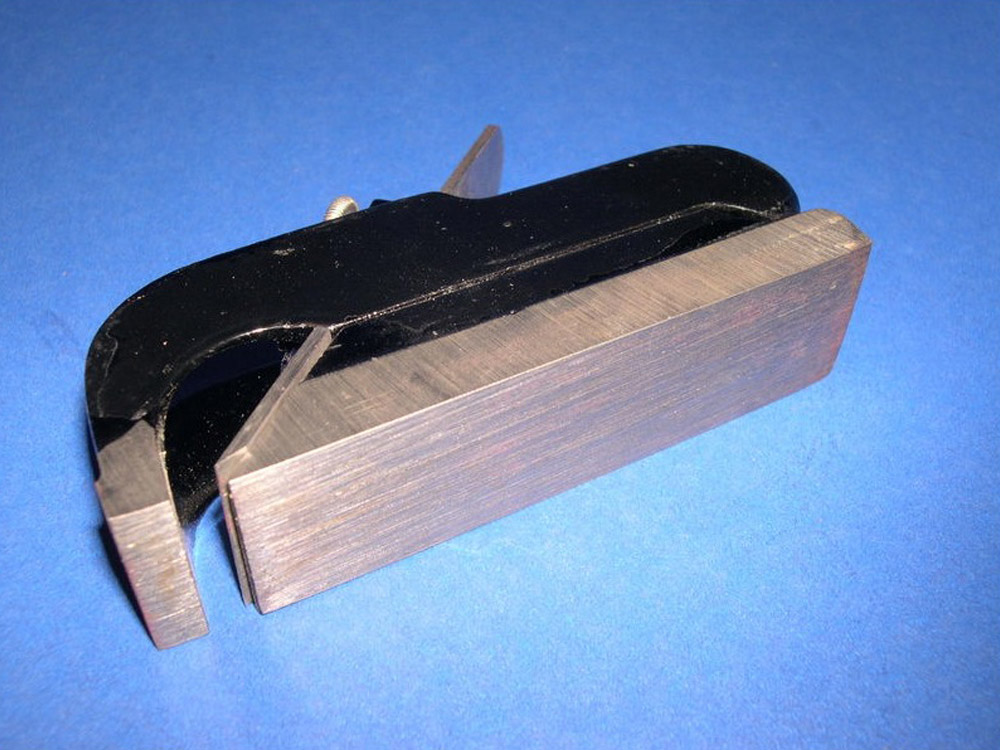

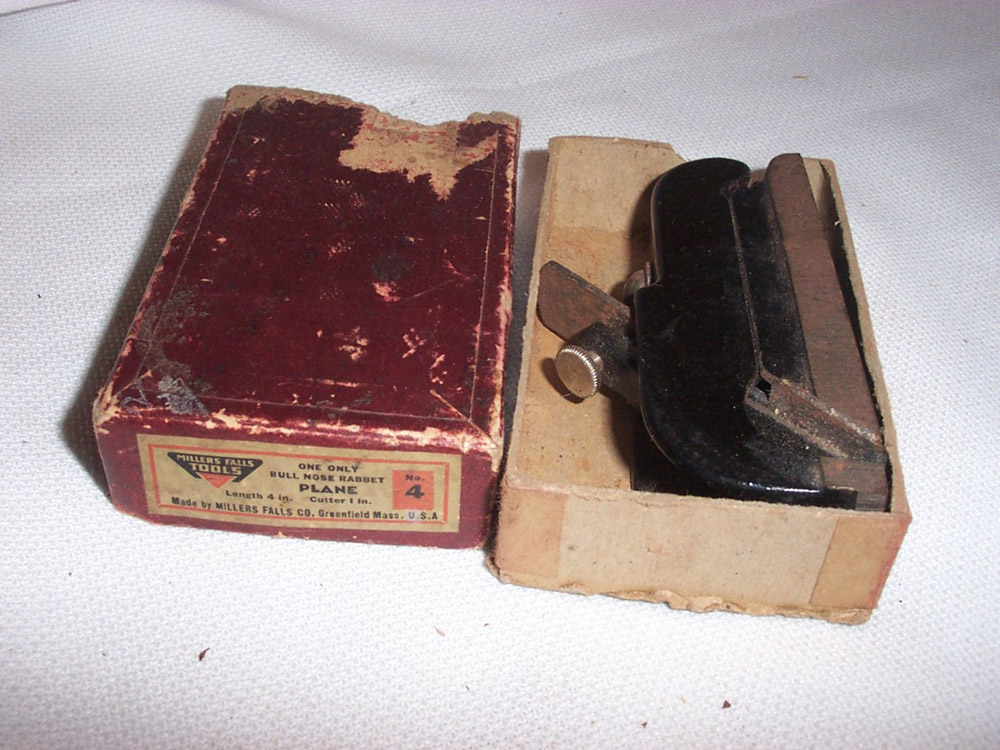

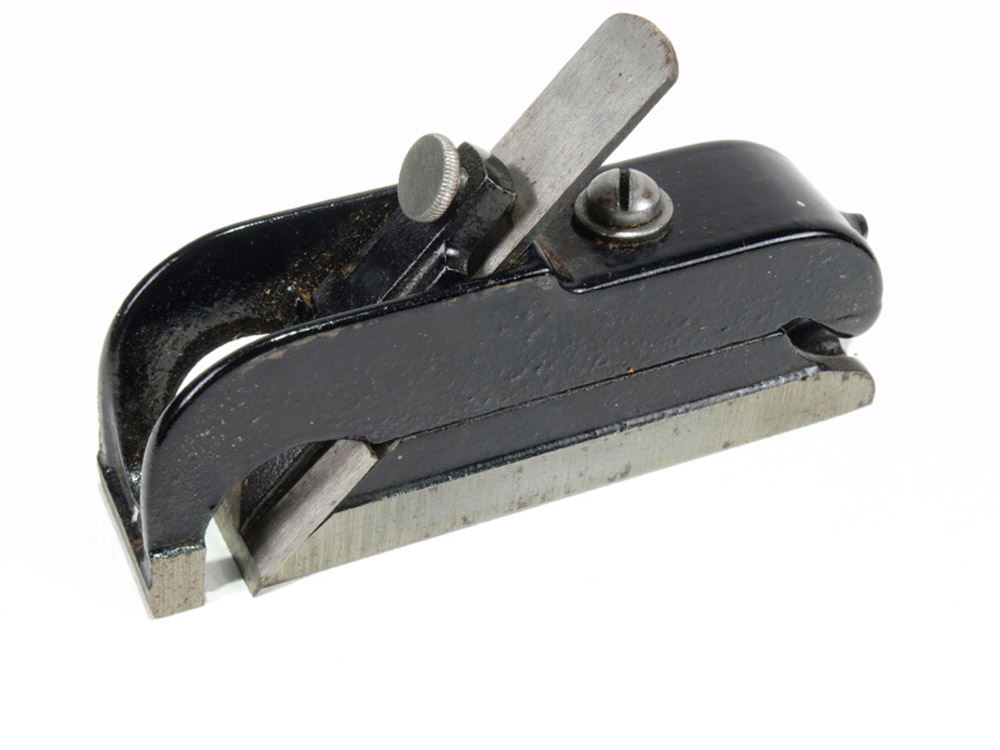

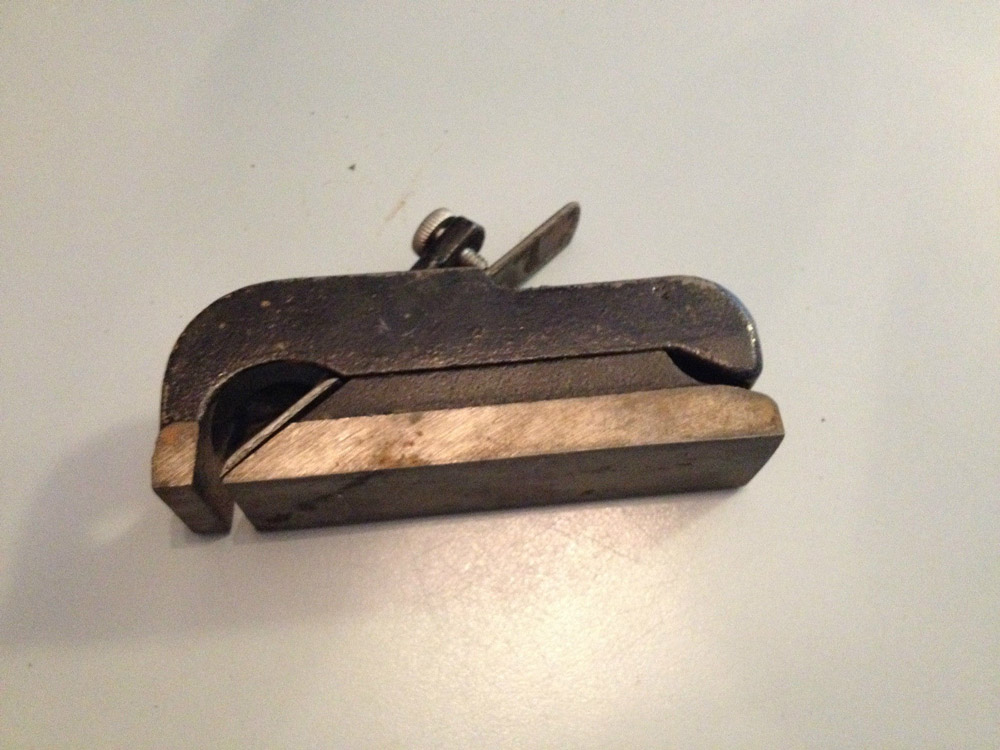

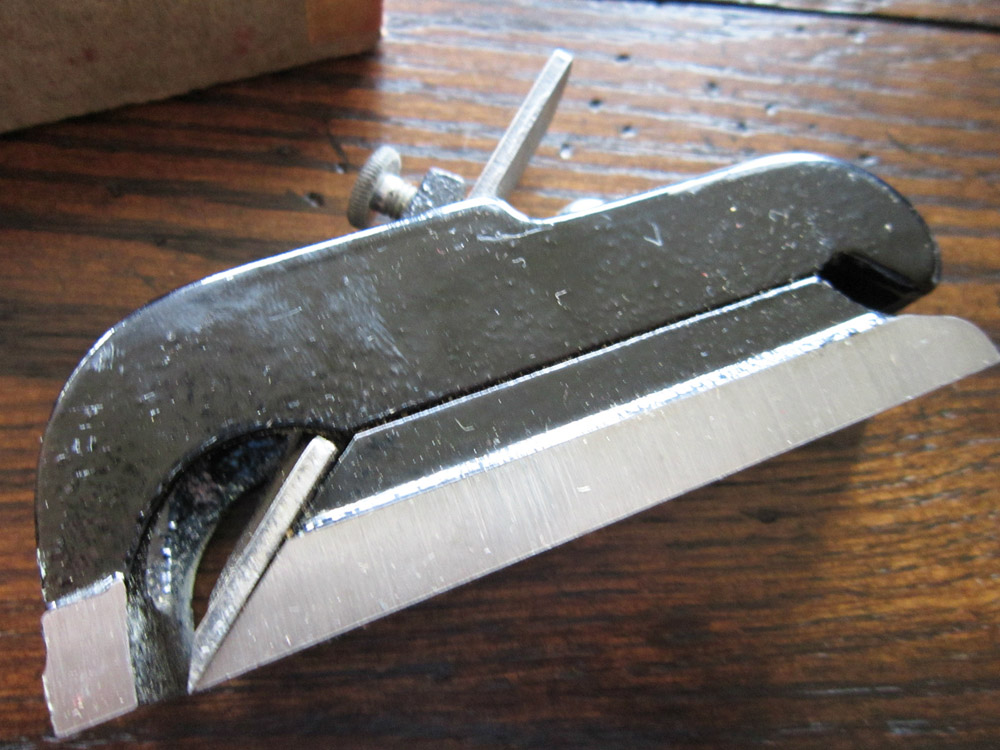

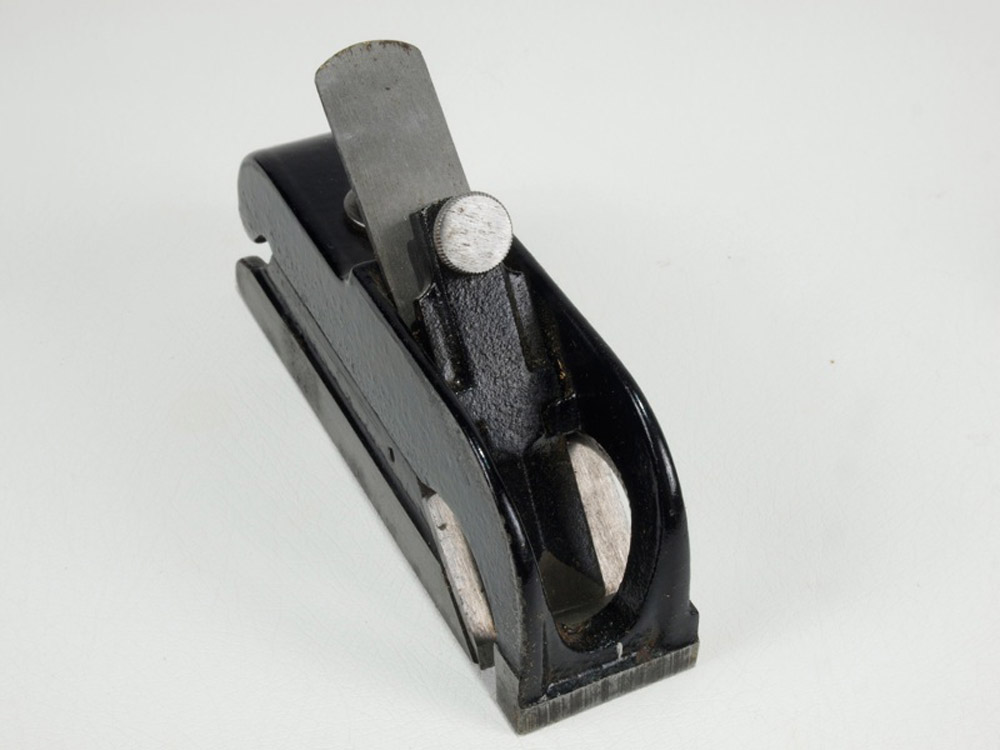

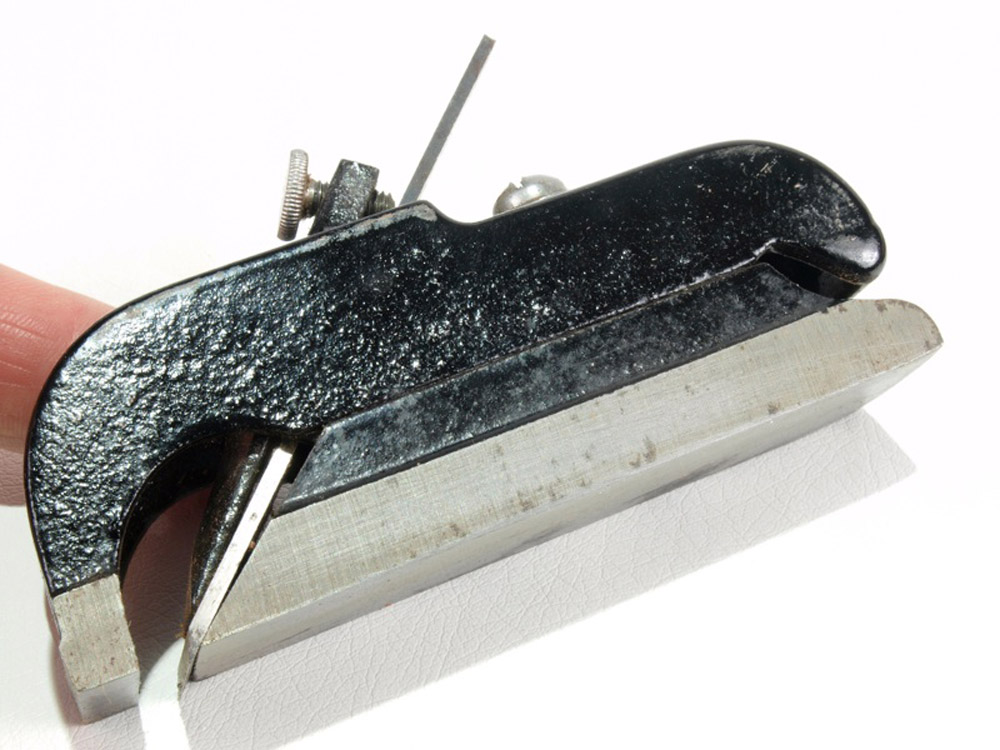

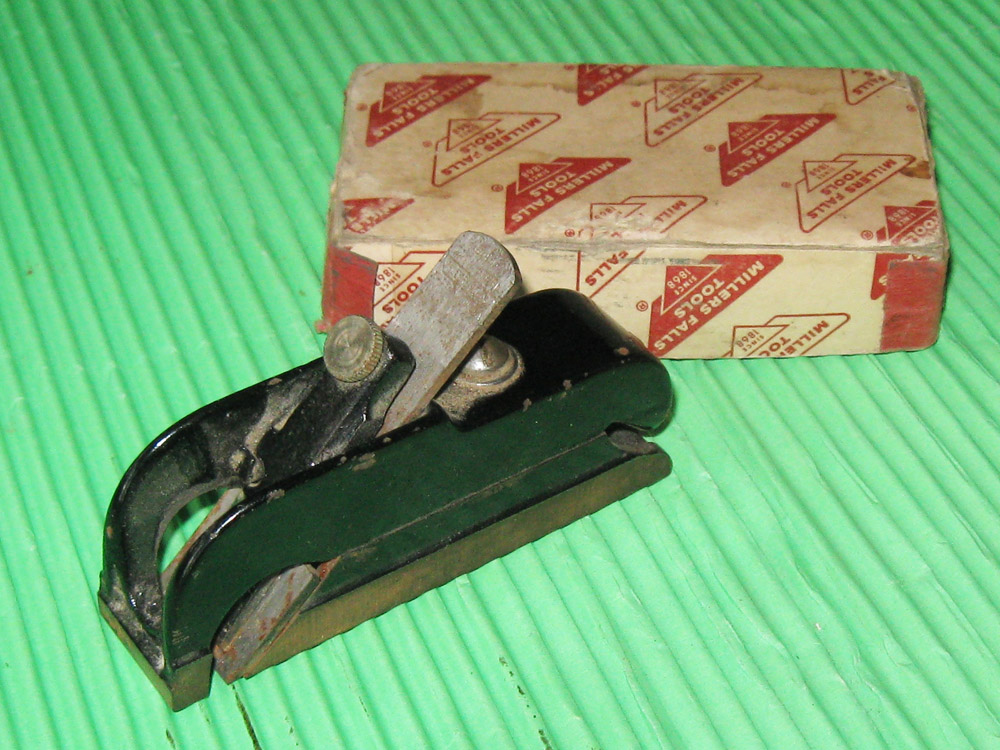

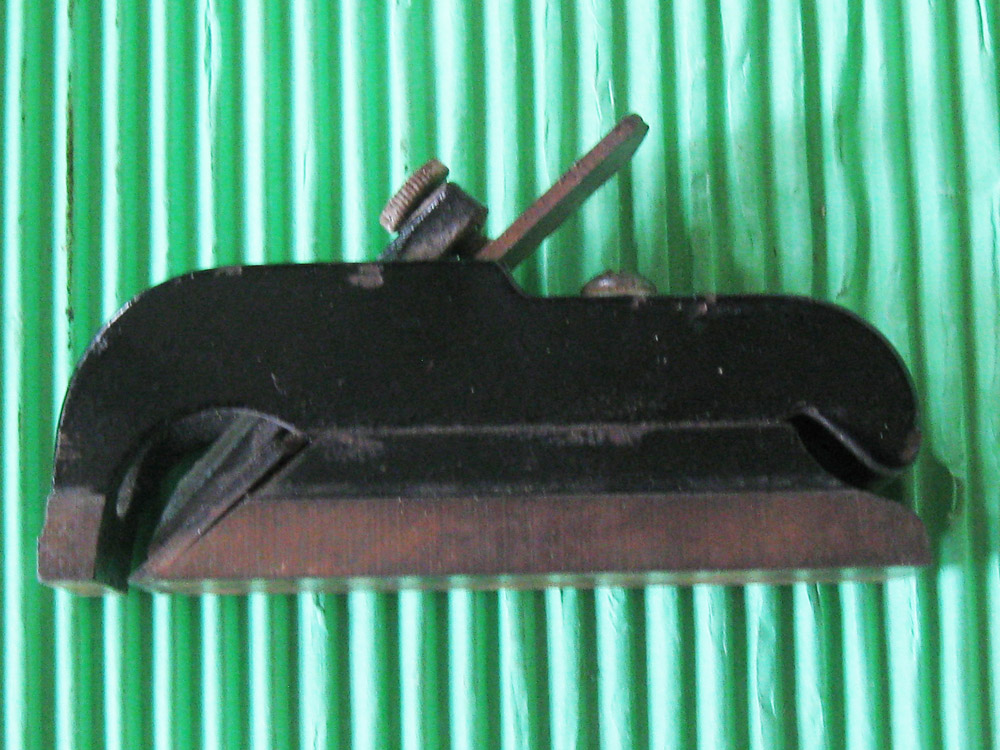

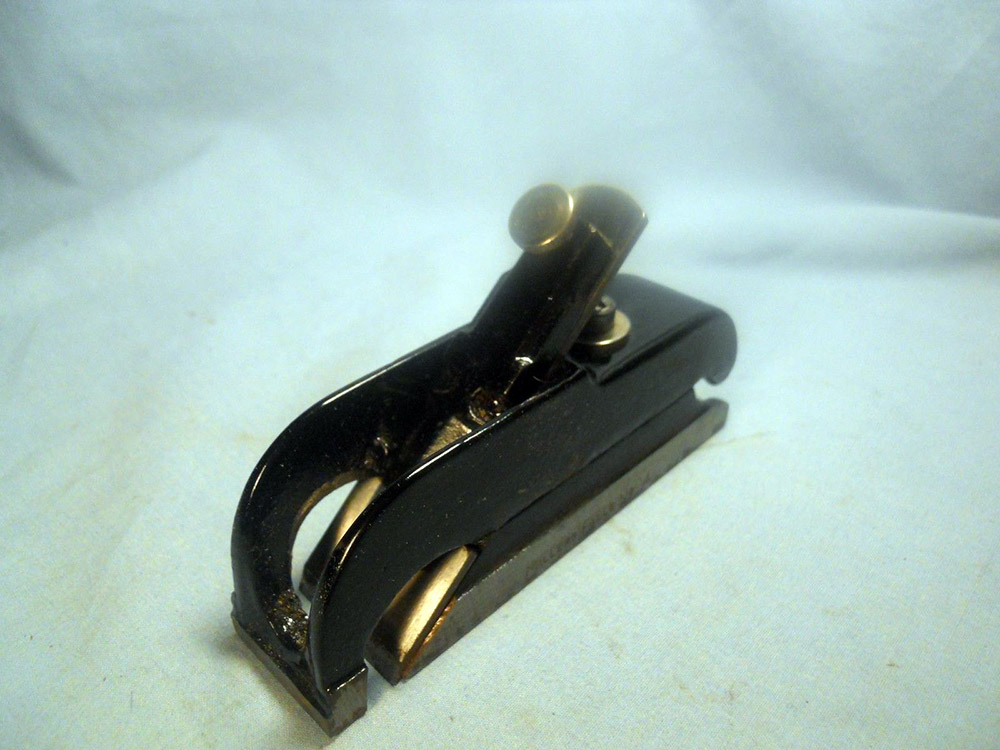

Millers Falls No. 4 Bull-Nosed Block Plane
as illustrated in the Millers Falls catalog No. 42 (January 1938).
Millers Falls No. 4 Bull-Nosed Block Plane
as illustrated in the 1961 Millers Falls catalog.
Bull-Nosed Rabbet Plane
Inexpensive but serviceable planes. Screw operated cap clamps. Bottoms polished. Sides and cap black enameled.
Especially adapted for working in close quarters and up into corners. Polished bottom and sides. Black enamel trim. (1938 description)

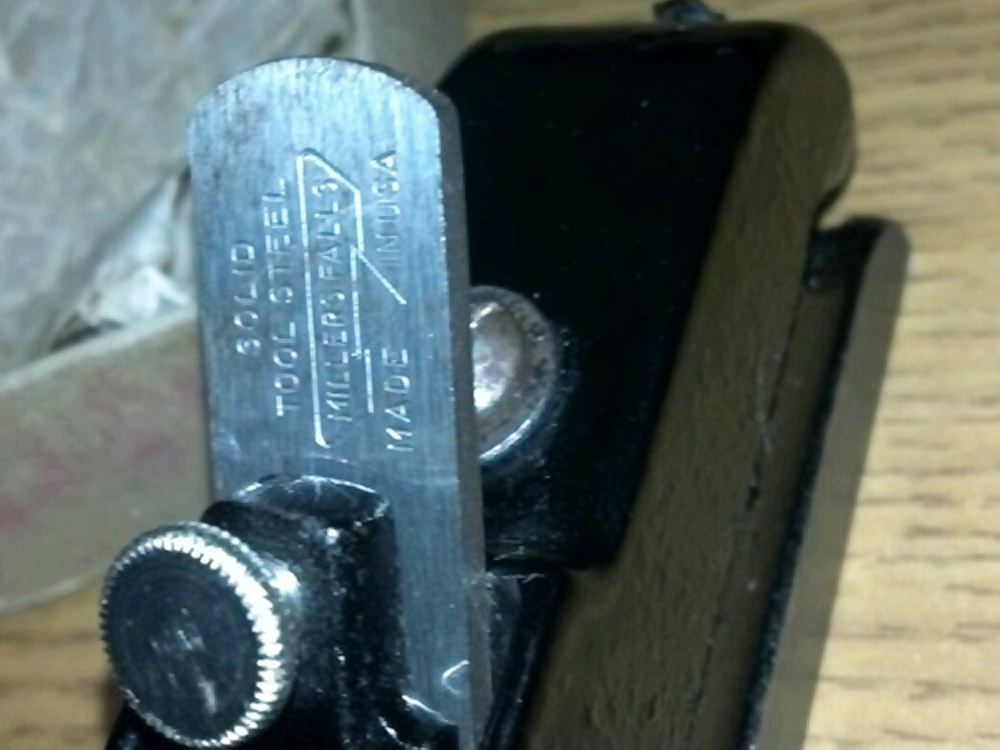

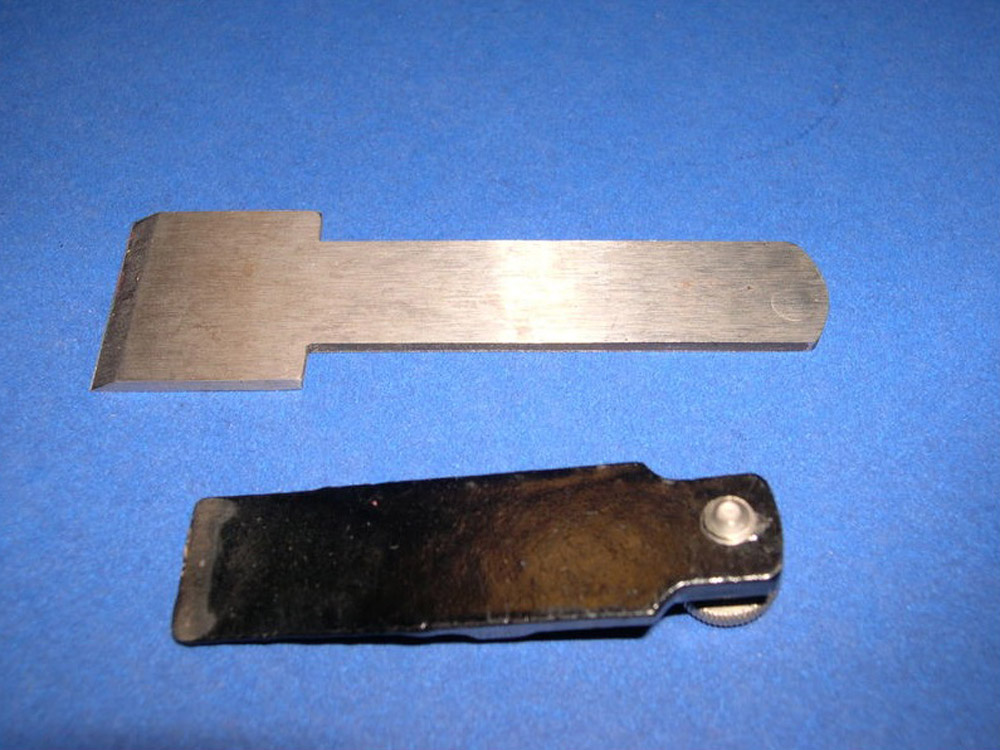

Ideal for working in close quarters and in corners. Polished sides and bottoms. Black enamel trim. Solid steel cutter hardened and tempered. Length, 4 inches; cutter, 1 inch. (1961 description)
Note: The above information has been reproduced from original catalog listings.
Specifications:
Plane Type: | Block Plane |
Features: | Compact size Bull-Nose plane |
Manufactured: | From 1929 to 1974 |
Length: | 4 inches |
Cutter Width: | 1 inch |
Weight: | ⅝ lb. |
Construction: | Cast iron body |
Finish: | Japanned |
Price (1938): | $0.90 |
Uses: | Special purpose block plane |
Please check the Value Guide For Millers Falls Planes page for relative prices.
Additional Notes:
This particular model became the No. 4-01 in 1969, and then was re-numbered again as the No. 4-02 when production moved over to England in 1971.
